Versatile installation in a considered design
With three installation options, ALAG M offers flexibility within outdoor lighting applications. The spotlight can be wall-mounted, positioned using the included ground spike or configured as a low bollard with an optional tube. Available in black or brown, with a honeycomb accessory included and a cap offered separately.
Specifications
Application: Outdoor
Light source: LED
Wattage: 7W
Voltage: 230V
Colour temperature: 927 / 930
Dimming: ON/OFF
Beam angle: 15°, 24°, 36°
Diameter: ø52.5mm
Height: 111mm
Finish: Sandy Black / Brown
Material: Aluminium

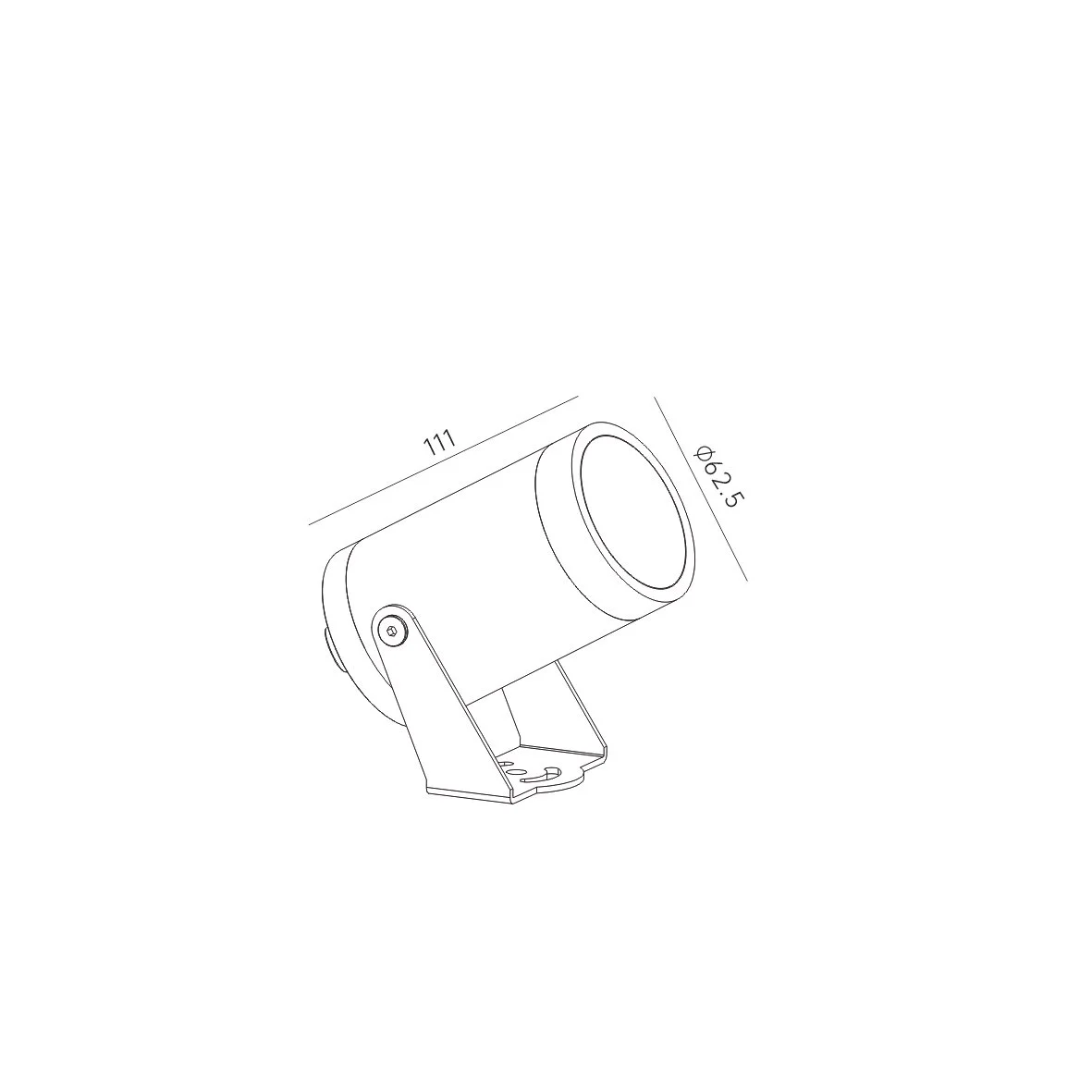

Drawings
ALAG M
View Drawing →
View Lamp cap drawing →
View Pole drawing →
