Adjustable light with recessed optics
Designed with a ø100mm cut-out, the 12W Downlight allows the direction of light to be adjusted through ball-bearing movement and swivel joints. Its reflector or zoom sits deep within the fitting to support visual comfort and reduce glare.
Specifications
Application: Indoor
Light source: LED
Wattage: 12W
Voltage: 230V
Colour temperature: 927 / 930
Dimming: ON/OFF, TRIAC & DALI
Beam angle: 36°
Mounting: Recessed
Cut-out: ø100mm
Diameter: ø60mm
Height: 201mm
Finish: Sandy Black / Sandy White
Material: Aluminium

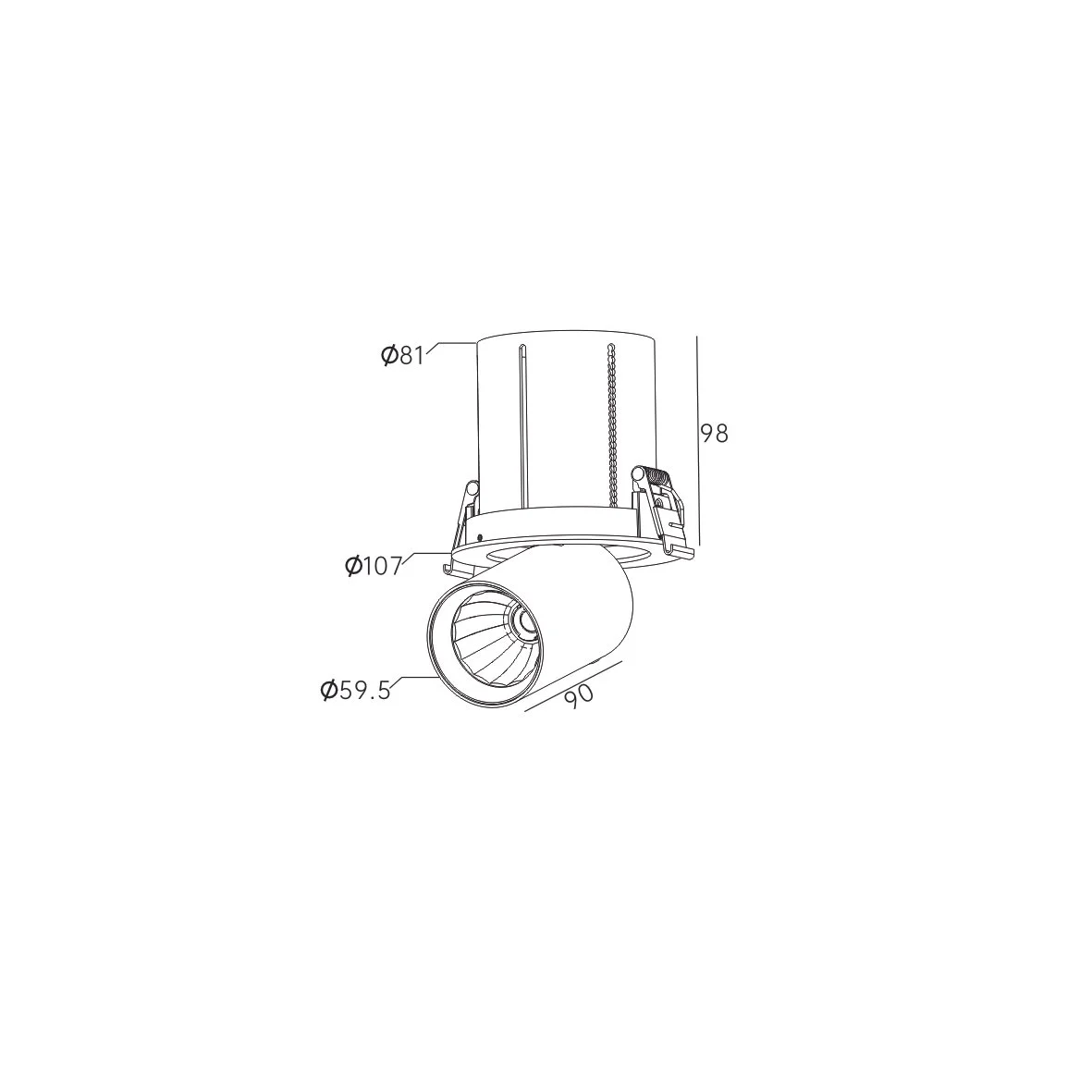

Drawings
AXIS DL M
View Drawing →
